Precision Power & Analog Test
Test System Optimized for High Throughput, Low Cost of Test for Single Site, Multi-site and Index Parallel Applications.
The ETS-88 is an optimal test platform for testing a wide variety of devices including: simple analog, high precision, high voltage, high current / power, automotive, video, audio, complex mixed-signal, as well as emerging power processes like SiC and GaN. The ETS-88 test system hardware is designed to provide independent floating resources per site to avoid resource sharing across sites while improving site-to-site isolation and measurement accuracy.
 |
 |
 |
|

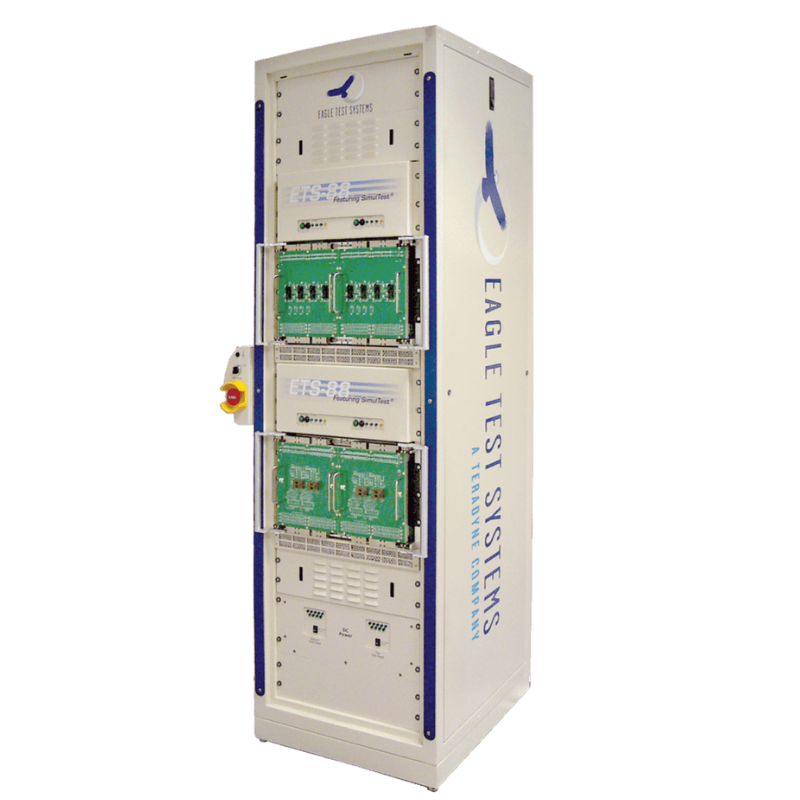

ETS-88 2 M Cabinet Option |
ETS-88 1.5 M Cabinet Option |
ETS-88 TH Option |
Configuration
- Cable Mount
- Direct Mount
- Dual Card Cage
- Multiple Cabinet Sizes
Extensive Test Coverage
- Direct Current (DC), Alternating Current (AC), Digital
- QPLU support for testing 16-bit converters
- Suitable for measuring operational amplifiers and comparators
- Precision capacitance and current measurements
Extensive Device Handling Support
- Wafer Sorting CP - Known Good Die (KGD)
- Rotary, Linear, Strip FT
4-Wafer Tower Configuration >99% Parallel Testing Efficiency

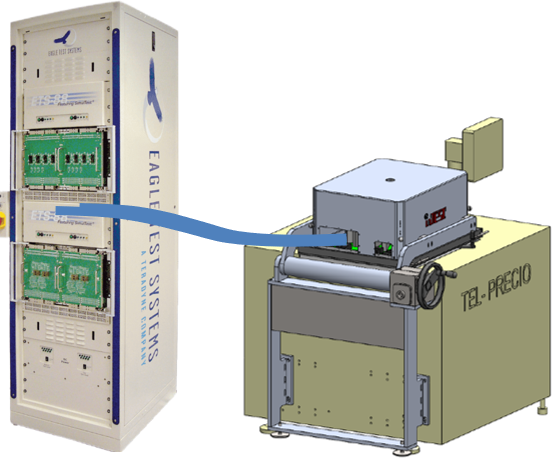

ETS-88 CP Solution
Specifications
Super set: 2KV/ 240A
SiC: 3KV/ 5KV/ 300A
GaN Kit: UG w/ RDSon
Applications
IGBT/ Mos
SiC Mos
GaN Mos
Features
32-site Super set
2-site SiC
32-Site GaN Kit (UG)
ETS-88 KGD Solution
Specifications
UPH: 1000 pcs+
DC: 2000V/ 200A
SW: 1000A ; SC: 3000A
Applications
SiC for Automotive module
Features
Less to 2 touch (High/ Room Temp.)
DC+AC/ DC+UIL
ETS-88 FT Solution
|
Power Discrete: Specifications UPH: 600 pcs+ DC: 2000V/ 200A AC+ UIL+RG
Applications SiC/ DCM GaN
Features SiC/ DCM 2-site (High/ Room Temp.) GaN:Dynanic RDSon
|

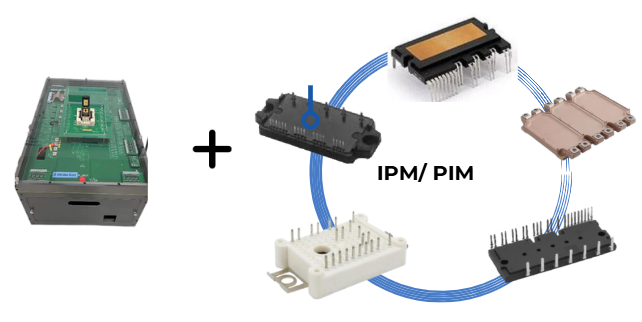

Power Module: Specifications UPH: 400 pcs+ DC: 2000V/ 800A SW: 1000A ; SC: 10KA
Applications Consumer Electronics Green power inverter Automotive
Features IPM PIM/ HPD DC+AC+UIL+RG |
